1800 RPM S6700E 120 Voltage Generator Parts| Model: | S6700E | Speed: | 1500/1800RPM |
|---|---|---|---|
| Engine: | CUMMINS DIESEL ENGINE | Product: | GENERATOR PARTS |
| Key: | DIESEL ENGINE SPEED CONTROL | Work Temperature: | -40 TO +85 CELSIUS DEGREE |
| High Light: | 1800RPM GENERATOR PARTS,S6700E GENERATOR PARTS,120V ELECTRONIC GOVERNOR FOR DIESEL GENERATOR |
||

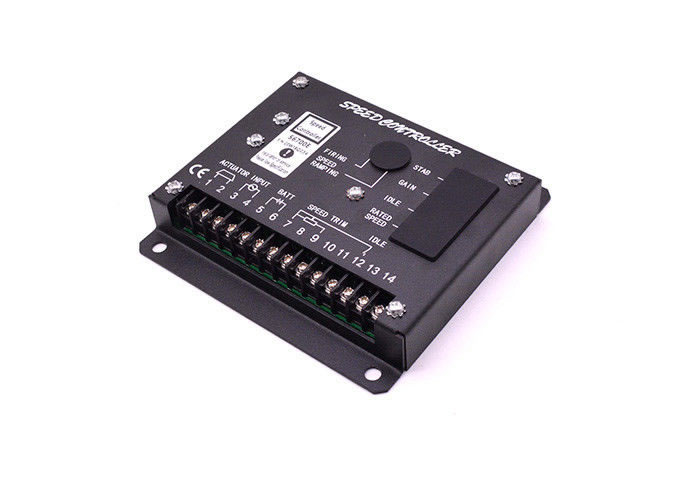

Generator Parts DCEC Speed Controller Board S6700E Diesel Engine Speed Control Unit Governor
Speed Controller S6700E
Diesel Generator Control Unit Speed Control System S6700E Is PID Adjustment Design. It Can Instant And Accurately Reaction To The Transient Change Of The Loading Then To Make The Engine Speed In Stable Situation. It Can Perfectly Control The Engine Speed By Connected To The EFC Series Electronic Acuator And Speed Sensor.
This Unit Is Design To Easy Installation And Can Pre-Adjustment, Including Regulation Rate And Working Idling. Different Model Of EFC Series Can Controll Kinds Of Output Generator Sets.
| ELECTRONIC SPEED GOVERNOR S6700E | |
| SPEED STABLITY | BETTER THAN ±0.25% |
| SPEED RANGE | 1KHZ ~ 7.5KHZ |
| THERMOSTABLITY | MAX ±1% |
| IDLE ADJUSTMENT | 160 ± 20HZ ~ RATED SPEED 95% |
| POWER INPUT | |
| VOLTAGE | 12V DC 24V DC |
| OUTPUT | 50MA |
| SIGNAL OF SPEED SENSOR | 0.5 ~ 120V RMS |
| SPEED RANGE | 1K-7.5K HZ |
| SPEED TRIM RANGE | ±200HZ |
| GROSS WEIGHT | 0.65KG |
| PACKAGE SIZE | 180*175*55MM |
| EXPIRATION | 1 YEAR |
| TEMPERATURE RANGE | -40℃~85℃ |
| RELATIVE HUMIDITY | <95% |
If you have inquiry, please leave us a message, we will reply you as soon as we can!
